Overview

A relatively new global dataset of urbanization changes over the 40 year period 1975-2014 based upon Landsat data is used to determine the average effect urbanization has had on surface temperatures. A method is presented to compute the magnitude of the Urban Heat Island (UHI) effect on temperatures using the example of summertime 09 UTC (early morning) Integrated Surface Database (ISD) hourly data (mostly from airports) over the period 1973-2022 by comparing urbanization differences to temperature differences from closely-spaced weather stations. The results for the eastern U.S. lead to a 50-year warming trend 50% less than that from the official NOAA homogenized surface temperature dataset. It is likely that the daytime reductions in temperature trends will be less dramatic.

Background

Over the U.S., summertime warming in the official NOAA surface temperature record has been less than in all of the climate models used to guide national energy policy. That discrepancy could be even larger if spurious warming from increasing urbanization remains in surface temperature trends. While NOAA’s homogenization procedure has largely removed the trend differences between closely-spaced rural and urban stations, it is not clear whether the NOAA methodology actually removes increasing Urban Heat Island (UHI) effects since it’s possible it simply adjusts rural warming to match urban warming.

Anthony Watts has spearheaded a years-long effort to try to categorize how well-sited the USHCN network of temperature-monitoring stations is, and has found that the best-sited ones, on average, show temperature trends considerably lower than the official trends from NOAA. The well-sited thermometers are believed to have minimized the influence of local outbuildings, sidewalks, HVAC systems, parking lots, etc, on the trends. But economic growth, even in rural areas, can still lead to gradual spurious warming as the area outside the immediate vicinity of the thermometer undergoes growth. The issue is important enough that other methods of computing land-based temperature trends should be investigated. To that end, John Christy and I have been discussing ways to produce a new dataset of surface temperatures, with a largely independent set of weather stations and a very different data-adjustment philosophy.

Many readers here know I have been experimenting off an on over the years with U.S. surface thermometer data to try to determine how much U.S. warming trends have been affected by increasing urban influences. I have been trying to use datasets that can be applied globally, since it is impractical to visit and examine every weather observation site in the world. So far, I had been limited to using population density as a proxy for urbanization, but I have never been convinced this is good enough. The temperature data I use are mostly independent of the max/min data utilized by NOAA, and come from mostly airports. In the U.S., ASOS (Automated Surface Observing System) and AWOS data make up the bulk of these measurements, which are taken hourly, and which NOAA then does light quality control on and provides for a global network of stations as the Integrated Surface Database (ISD).

The Global Human Settlement (GHS) Datasets

Recently I became aware the EU’s European Commission Global Human Settlement Layer project which has developed global, high-resolution datasets quantifying the increasing influence of humans on the terrestrial environment. Of these Global Human Settlement (GHS) datasets I have chosen the “Built-Up” dataset layer of manmade structure densities developed from the Landsat series of satellites since 1975 as being the one most likely to be related to the UHI effect. It is on a global latitude/longitude grid at 30 second (nominal ~1 km) spatial resolution, and there are four separate dataset years: 1975, 1990, 2000, and 2014. This covers 40 of the 50 years (1973-2022) of hourly ISD I have been analyzing data from. In what follows I extrapolate that 40-year record for each weather station location to extend to the full 50 years (1973-2022) I am analyzing temperature data for.

Has Urbanization Increased Since the 1970s?

I feel like the starting point is to ask, Has there been a measurable increase in urbanization since the 1970s? Of course, the answer will depend upon the geographical area in question.

Since I like to immerse myself in a new dataset, I first examined the change in satellite-measured “Built-Up” areas in two towns I know well, at the full 1 km spatial resolution. My hometown of Sault Ste. Marie, Michigan (and area with very little growth during 1975-2014), and the area around Huntsville International Airport, which has seen rapid growth, especially in neighboring Madison, Alabama. The changes I saw for both regions looked entirely believable.

Next, I asked Danny Braswell to plot an image of the 40-year change in urbanization from this dataset over the southeast U.S. The result is shown in Fig. 1.

Fig. 1. The 40-year change in urbanization (2014 minus 1975) over the southeast U.S. from the Landsat-based “Built-Up” dataset.

Close examination shows that there has been an increase in manmade structures nearly everywhere that human settlements already existed. I was somewhat surprised to see that these increases are also widespread in Europe, so that we can expect some of the results I summarize below might well extend to other countries.

Quantifying the Urbanization Effect on Surface Air Temperature

I took all hourly-reporting weather stations (ASOS and AWOS), mostly from airports, in the ISD dataset and for all stations having data at least as far back as 1973. I computed the temperature differences at 09 UTC (close to the daily minimum temperature time) between stations no more that 50 km apart, as well as differences in the Landsat Built-Up values (0 to 100). The Built Up datasets are from 4 separate years: 1975, 1990, 2000, and 2014. I used five years of temperature data centered on those four Landsat years for a total of 20 years of August average 09 UTC temperatures to compare to the corresponding four years of urbanization differences. After considerable experimentation, I settled on the four spatial averaging zones shown in Fig. 2 to compute those urbanization differences. This allows a determination of the magnitude of the UHI influence as a function of distance from the thermometer station location.

Fig. 2. Averaging zones for Landsat-based “Built-Up” data, nominally at 1 km resolution, for comparison to inter-station temperature differences.

The station pairs used in the analysis are shown in Fig. 3 (sorry for the lack of state boundaries).

Fig. 3. Weather station pair locations used in the data analysis.

When the temperature differences are computed between those station pairs, they can be plotted against the Zone-average differences in urbanization as measured from Landsat. An example for Zone #3 is shown in Fig. 4, where we see the difference in closely spaced station temperatures is indeed related to the difference in Landsat-based urbanization, with some differences in temperature reaching 4 to 5 deg. C (up to 10 deg. F).

Fig. 4. Twenty years of inter-station temperature differences versus Landsat-based urbanization differences over the eastern United state. Temperature data were the monthly August averages at 09 UTC (close to the time of daily minimum temperature).

The actual algorithm to adjust temperatures uses not just the zone shown in Fig. 4, but all four zones of average Built-Up values in a multiple regression procedure. The resulting coefficients were:

Zone #1: +0.050 deg. C per 10% urbanization difference

Zone #2: +0.061 deg. C per 10% urbanization difference

Zone #3: +0.172 deg. C per 10% urbanization difference

Zone #4: +0.081 deg. C per 10% urbanization difference

The sum of these coefficients is 0.37 deg. C/per 10%, which is essentially the same as the regression coefficient in Fig. 3 for a single zone. The difference is that by using 4 averaging zones together, the correlation is improved somewhat (r=0.67 for the multiple regression), and we also get to see what regions of urbanization have the most influence on the temperatures. From the results above we see all of the averaging zones are important, with Zone 3 contributing the most to explaining the UHI effect on warming, and the 3×3 km zone closest to the thermometer has the last amount of information. Note that I have no information regarding the microclimate right next to the thermometer site (as Anthony uses), so if heat generating equipment was added in the vicinity of the thermometer over the 40 year period 1975-2014, that would not be quantified here and such spurious warming effects will remain in the temperature data even after I have de-urbanized the temperatures.

Application of the Method to Eastern U.S. Temperatures

The resulting regression-based algorithm basically allows one to compute the urban warming effect over time over the last 40-50 years. To the extent that the stations used in the analysis represent all of the eastern U.S., the regression relationship can be applied anywhere in that region, whether there are weather stations there or not.

I applied the method to 269 stations having sufficient data to compute 50-year trends (1973-2022) for August 09 UTC temperatures, and Fig. 5 shows the raw temperature trends versus the de-urbanized temperature trends. When stations in each of the 37 states are averaged together, and the state averages are area-weighted, there is a 40% reduction in the average temperature trend for those 37 states.

Fig. 5. Raw versus de-urbanized temperature trends across 269 stations in the eastern U.S. for 09 UTC August temperatures (approximately, August daily minimum temperatures).

For the reasons stated above, this might well be an underestimate of the full urbanization effect on eastern U.S. temperature trends.

We can examine the temperature at some individual stations. For example, Figs. 6, 7, 8, and 9 show the raw versus de-urbanized temperatures at Orlando, Indianapolis, Waterloo (IA), and Sault Ste. Marie, (MI). Since I am only dealing with a single month (August) there are no seasonal effects to remove so we can plot actual temperatures rather than temperature anomalies.

Fig. 6. Average August 09 UTC temperatures, 1973-2022, from raw hourly measurements and after Landsat-based de-urbanization adjustment.

Fig. 7. Indianapolis average August 09 UTC temperatures, 1973-2022, from raw hourly measurements and after Landsat-based de-urbanization adjustment.

Fig. 8. Waterloo, IA average August 09 UTC temperatures, 1973-2022, from raw hourly measurements and after Landsat-based de-urbanization adjustment.

Fig. 9. Sault Ste. Marie, MI, average August 09 UTC temperatures, 1973-2022, from raw hourly measurements and after Landsat-based de-urbanization adjustment.

(As an aside, while I was in the University of Michigan’s Atmospheric and Oceanic Science program, I worked summers at the Sault weather office, and made some of the temperature measurements in Fig. 9 during 1977-1979.)

How Do These Trends Compare to Official NOAA Data?

The statewide-average temperatures from NOAA’s Climate at a Glance website were compared to the corresponding statewide averages computed here. First let’s look at how the raw ISD trends compare to the NOAA-adjusted data (Fig. 10).

Fig. 10. Statewide-average August temperature trends, 1973-2022, from official NOAA-adjusted data versus the unadjusted hourly temperatures at 09 UTC.

Note the official NOAA temperatures have an average trend higher than the raw ISD data trend (they are mostly independent data sources): +0.244 C/decade vs. +0.199 C/decade. Once the de-urbanization procedure is applied to the individual ISD stations, the results show an average trend fully 50% below that produced by the official NOAA product (Fig. 11).

Fig. 11. As in Fig. 10, but after de-urbanization of the ISD 09 UTC temperatures and trends recomputed.

Summary and Conclusions

There is much more I could show, but from the analysis I’ve done so far I believe that the Landsat-based “Built-Up” (urbanization) dataset, which extends back to the 1970s, will be be useful for “de-urbanizing” land-based surface temperature datasets, in the U.S. as well as in other countries. The methodology outlined here is straightforward and the regression statistics are robust (the regression coefficients are all significant, at the 3-sigma level or better).

The urbanization effect on surface temperature trends for August at 09 UTC (near the time of daily minimum temperature) results in a 50% reduction in those trends over the last 50 years. From some preliminary looks I have had at the data from other months and times of day I’d say this will likely be the upper limit of de-urbanization adjustments. So, it is likely that trends in daytime temperature near the time of the daily maximum will not be reduced nearly as much as 50%.

But given the fact that all CMIP6 climate models produce U.S. summer temperature trends greater than the NOAA observations means the discrepancy between climate models and observations is even larger than currently suspected by many of us. John Christy and I believe it is time for a new surface temperature dataset, and the methodology outlined above looks like a viable approach to that end.


286 Responses to “De-Urbanization of Surface Temperatures with the Landsat-Based “Built-Up” Dataset”

Toggle Trackbacks

  1. Entropic man says:

    The first question that comes to mind is-

    Why do you not regard UHI as a form of global warming?

    EM-
    Why? Let me count the ways. (1) It isn’t global.. it’s non-existent over most of the Earth (oceans and rural land areas). (2) It has an entirely different cause from the cause of “Global Warming” as currently defined and understood by everyone. And, (3) the climate models that must be tested with the surface temperatures do not include increasing urbanization effects.
    -Roy

    • gbaikie says:

      It is, but it’s not global warming of earth, it’s global warming of where people live.

      To reduce energy use, generally you want high density population.
      Btw, this doesn’t mean big cities- small towns can have a high density population.

      I think you build high density populations in ocean settlements.

      gbaikie:
      You are conflating 2 different processes. One is “global warming” from increasing CO2, everywhere. That is the same whether lots of people live in a location or not.
      -Roy
      -Roy

      • gbaikie says:

        This is weird, but I will reply:
        –gbaikie:
        You are conflating 2 different processes. One is global warming from increasing CO2, everywhere. That is the same whether lots of people live in a location or not.
        -Roy
        -Roy —

        You don’t understand my point.
        New York state has low per capita emission, largely due to population density.
        UHI effect doesn’t have anything to due with local levels of CO2.
        But cities or towns do have higher local CO2 levels. And also wildly varying CO2 levels. Hence why measure global CO2 level on a high mountain in the Pacific.

        • stephen p. anderson says:

          Dr. Spencer,

          This is what you’ve been suggesting for years UHI has influenced a lot of the data. I wish you’d take a look at the data from a different perspective, that is, step-changes, and not linear analysis. Murry Salby suggests that temperature data is step-changing. For instance, in 1979 it oscillated at about -0.3C, then it stepped up and oscillated at about 0.0 and in 2012 it stepped up and is oscillating at about 0.2C. So, not looking at max and min but what it is oscillating about.

          • bdgwx says:

            Has it influenced temperature trends that much though? Even using the 0.08 C/decade effect from the article as representative of all land areas that works out to 0.024 C/decade globally using a 30/70 split of land/ocean area. And that is being generous since that 0.08 C/decade figure is for 1) a particularly urban land area and 2) not arrived at using an area weighted technique like gridding. So I think 0.024 C/decade is on the extreme upper end of the plausible range of UHI effect upon the global temperature. That’s only 13% of the +0.19 C/decade trend since 1979 from BEST, ERA, Had.C.RUT, and GISTEMP and again that’s being very generous.

          • stephen p. anderson says:

            It would change the points of your line plots, I think, so the slope would be different.

          • bill hunter says:

            bdgwx, It may not be a lot but getting corrections to temp records can better align the various ways of measuring climate change. I would think that there isn’t just a single error in our monitoring finding them one by one and rooting them out will eventually lead to more agreement.

            Keep in mind that many components of the surface record has been repeatedly corrected often by forcing it to balance to other records. It would be hard for an auditor to be comfortable with that without a full historical analysis and validation with all the available science as the amount of warming we have seen is so modest its doubtful anybody would have noticed it empirically without special devices.

        • JF says:

          It seems to me the UHI (local warming) effect at each station will not keep raising the temperature once the area density has reached its maximum, will it? So any increases above that point can be attributed to CO2? And if that is true, if the temperature doesn’t increase once the density is maxed? To what will that be attributed? Is that why “global warming” is now “climate change?” That increased levels of CO2 create both warm and cold changes?

          • David Gray says:

            Even if one accepts that nano-increases in CO2 might affect temperatures, any such thing locally would be greatly overshadowed by the effects of concrete, metal, and asphalt structures and atmospheric water vapor.

      • blaz says:

        Yes.. we know 100% of how urban areas have their own dynamic. That’s not a problem.. it is the areas that are not affected by large human populations that Roy Spencer seems to ignore. Where are these comparative stats I wonder?

  2. bdgwx says:

    We shouldn’t be removing the UHI effect. We only want to remove the UHI bias. Those are two different, albeit related, concepts. The effect is real and should be included. The bias is caused by the gridding strategy. For example, a grid cell that is a mix of urban and rural with a declining urban-to-rural station ratio would have a negative UHI bias despite the urban portion having a positive UHI effect. That’s right. It is possible for the UHI bias to be negative. And that is what Wickham et al. 2013 actually found globally though it was a statistically insignificant result of -0.01 +/- 0.02 C/decade bias. Again, the goal is not to “deurbanize” the datasets. The goal is to remove urban bias. The keyword here is bias.

    bdgwx:
    If you actually read my post (which it appears you did not) the method I provided removes the bias as a function of time. Of 269 stations, only ONE had no change in urbanization (El Dorado, Arkansas). There were NO station locations with a decrease in Landsat-observed urbanization.

    I don’t know how you can ignore the evidence…. given the evidence, your comment makes little sense.

    -Roy

    • bdgwx says:

      Dr. Spencer said: “If you actually read my post (which it appears you did not) the method I provided removes the bias as a function of time.”

      I did read the post. The way I’m understanding it (which could be wrong) is that you removed the effect; not the bias.

      For example, the Orlando International Airport is +0.30 C/decade “raw” and +0.07 C/decade “deurbanized” in the graphic. But the thing is…that site really warmed at a rate of +0.30 C/decade; not +0.07 C/decade.

      Sure, it is almost certain that a significant portion of that +0.30 C/decade of warming is caused by land use changes. But, that is a real effect. Just because the effect is positive does not mean that the site introduced a positive bias on a spatial average. The bias depends mostly on the gridding and averaging strategy that effect how much urban measurements are used as proxies for rural measurements and vice-versa.

      bdgwx:

      You said: “Sure, it is almost certain that a significant portion of that +0.30 C/decade of warming is caused by land use changes. But, that is a real effect. Just because the effect is positive does not mean that the site introduced a positive bias on a spatial average. The bias depends mostly on the gridding and averaging strategy that effect (you mean “affect”?) how much urban measurements are used as proxies for rural measurements and vice-versa.”

      OK, so you admit that land use change (urbanization) is a real effect and impacts temperatures. But, yes, if the station has this effect it DOES introduce a bias on the spatial averages! That’s the whole point, there are so many urban stations that they are representing rural areas!! Virtually NONE of the stations are rural, and so when 5 or ten mostly-urban stations are averaged together to represent the whole state, then yes, the spatial average is also impacted! NOAA does NOT actively reduce the urban temperatures to match rural. They throw all of the data together and let the greatest number of stations win!

      -Roy

      -Roy

      • bdgwx says:

        Dr. Spencer said: “OK, so you admit that land use change (urbanization) is a real effect and impacts temperatures.”

        Absolutely!

        Dr. Spencer said: “But, yes, if the station has this effect it DOES introduce a bias on the spatial averages!”

        It influences the spatial average. It does not bias it. Remember, a bias is just a measurement error. The UHI effect itself does not cause measurement error. It just causes the measurement to be higher than it would be otherwise. The error (or bias) comes into play when you use an urban measurement as a proxy for a rural area and vice versa.

        Dr. Spencer said: “Thats the whole point, there are so many urban stations that they are representing rural areas!!”

        That could be true. But this isn’t the way to test for the bias. There isn’t really any perfect way to test for the bias. There are only options each with its own limitations.

        Dr. Spencer said: “Virtually NONE of the stations are rural, and so when 5 or ten mostly-urban stations are averaged together to represent the whole state, then yes, the spatial average is also impacted!”

        That’s not how spatial averages are done though. Spatial averages are done by gridding the region and taking the average of the grid; not the stations.

        Dr. Spencer said: “NOAA does NOT actively reduce the urban temperatures to match rural.”

        Nor should they. What they should do is use counter measures to mitigate the proxification of rural areas with urban observations and vice versa. That’s the hard part.

        bdgwx:
        It appears you have some misunderstandings about how gridded datasets are constructed. If there are only a scattering of actual data point across a gridded field, there is no addition information added from “gridding”. If all you have are urban-biased measurements (which virtually all stations are), these WILL affect the gridded values where no actual data exist. Nothing you have said helps our understanding of all of this.
        -Roy

        • bdgwx says:

          There is additional information added by gridding…the area weights applied to the observations.

          For example, consider a 4 cell grid. Cells #1, #2, and #3 are rural each with one observation of 15 C. Cell #4 is urban with 5 observations of 16, 16, 15, 17, and 17 C. The trivial average is (15 + 15 + 15 + 16 + 16 + 15 + 17 + 18) / 8 = 15.9 C. But the grid average is only (15 + 15 + 15 + (16 + 16 + 15 + 17 + 18) / 5) / 4 = 15.4 C. The UHI effect in cell #4 is 1.4 C which causes a bias on the trivial average of 0.5 C due to the overweighting of urban observations. The UHI effect on the grid average is 0.4 C yet the UHI bias is 0.0 C because we used to the area information from the grid to avoid injecting the bias.

          You get a similar problem with infilling. Consider a 3×3 grid with 9 cells. The bottom left corner cell is urban with observations 16, 17, and 18 C with a cell average of (16 + 17 + 18) / 3 = 17 C. The remaining 7 perimeter cells are rural each with one observation of 15 C. The center cell is rural as well but has no observation so you decide on a simple linear interpolation strategy of the neighboring 8 cells. You fill that cell via ((16+17+18)/3 + 7*15) / 8 = 15.3 C. In reality the cell actually should have been just 15 C since it was rural. The grid average is (7*15 + 15.3 + 17) / 9 = 15.3 C. But if we replace the 15.3 C value infilled on the center cell with the true 15 C value we have (7*15 + 15 + 17) / 9 = 15.2 C. As you can see the UHI effect increased the grid average by 0.2 C while the bias increased it a further 0.1 C. The bias occurred because you used the urban observations as a proxy (at least partially) for a rural area.

          As you can see there is a difference between the bias and the effect. We want to keep the effect because it is real. It is the bias and only the bias that we want to avoid if the goal is an accurate global average temperature.

          By adjusting the urban observations you might remove any bias they inject into the average at the expense of also removing the effect as well. That’s fine if the goal is to isolate the UHI effect. Though, I’ll argue that gridding must still be performed to appropriately area weight the observations. It’s not fine if the goal is to form an accurate average temperature.

          • Mark B says:

            I haven’t fully digested the blog post, but my understanding is that Dr Spencer is applying an “urbanization correction” to each station.

            At any point in time that difference might be viewed as a “bias”. However, because urbanization is a time varying factor, the per station correction is time varying. Further, because urbanization is increasing on average the corrections have a net positive trend, which when removed decrease the net warming trend.

            What he’s done seems plausible enough so far as it goes, but there are potential pitfalls in this sort of analysis like station moves and instrument changes that haven’t explicitly been addressed.

          • bdgwx says:

            Deurbanization is plausible if the goal is to isolate the UHI effect. Though, I have questions about whether the method is really doing that even (I’m certainly open to accepting it is). It’s not plausible if the goal is to arrive at a correct average temperature. Urbanization itself does not cause a bias in the average temperature. It just causes the average temperature to be higher than it would be otherwise. Saying UHI itself is a “bias” is the equivalent of saying that changes in solar output is a “bias”. Neither is a bias. They are simply contributors to the temperature trend just like CO2, CH4, cloud cover, snow/ice cover, etc. The bias comes into play when you use urban areas as a proxy for rural areas and vice versa.

          • Mark B says:

            I think I see your point.

            AGW has contributions from (at least) atmospheric GHG, aerosols, and land use changes.

            Viewing “urbanization” as a component of “land use change” a hazard is that effects observed at a monitoring station may reflect an issue strictly local to the station or it may reflect a real change over a broader area. I’m not clear on whether the approach described effectively distinguishes between these two extremes and how big the effect from “real change over a broader area” might be.

      • Thomas says:

        Dr. Roy,

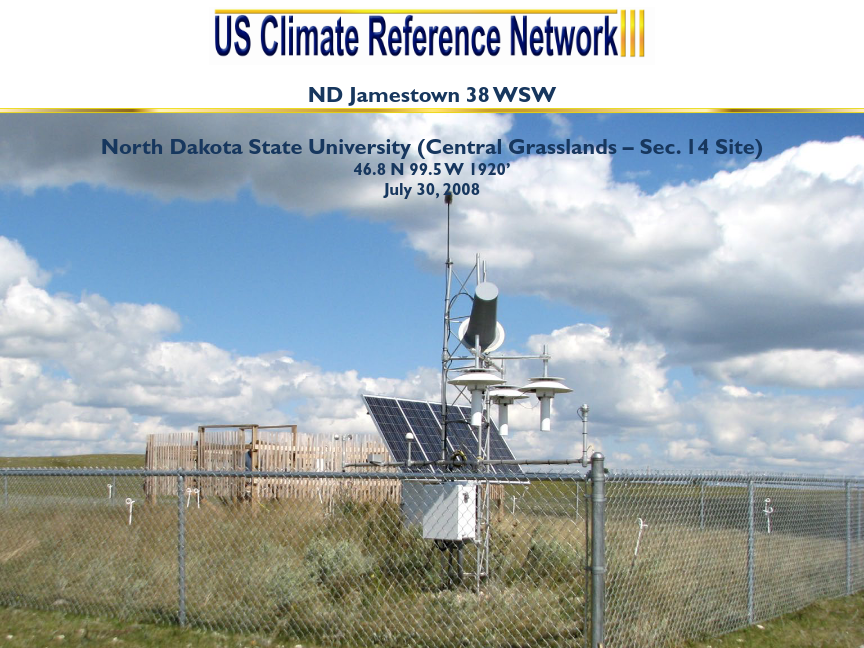

        The US Climate Reference Network (USCRN) should provide a good estimate of how much of the warming due to urbanization effect because the USCRN stations are all located in pristine areas.
